PowerBase-GaN285 is a versatile charging solution, engineered with next-gen GaNFast™ technology for compact, high-efficiency performance,
Tech Specs
Input: 100-240V 50/60Hz

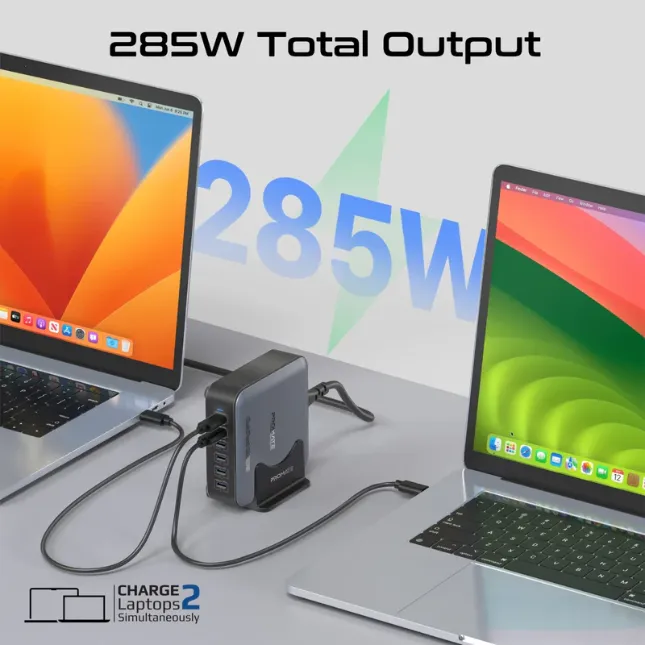

Total Output: 285W (Total)
USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, (PD 100W) ; PPS: 3.3V-11V/5A, 3.3V-20V/5A
USB-C2: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A , (PD 65W) ; PPS: 3.3V-11V/4.5A, 3.3V-21V/3.25A
USB-C3: 5V/3A, 9V/3A, 12V/2.5A, (PD 30W) ; PPS: 3.3V-5.9V/3A, 3.3V-11V/3A
USB-C4: 5V/3A, 9V/3A, 12V/2.5A, (PD 30W) ; PPS: 3.3V-5.9V/3A, 3.3V-11V/3A
USB-C5: 5V/3A, 9V/3A, 12V/2.5A, (PD 30W) ; PPS: 3.3V-5.9V/3A, 3.3V-11V/3A
USB-C6: 5V/3A, 9V/3A, 12V/2.5A, (PD 30W) ; PPS: 3.3V-5.9V/3A, 3.3V-11V/3A
Cable Length:
1.5M Product Dimensions:
96*96*33mm, Product Weight:, 297.8g
